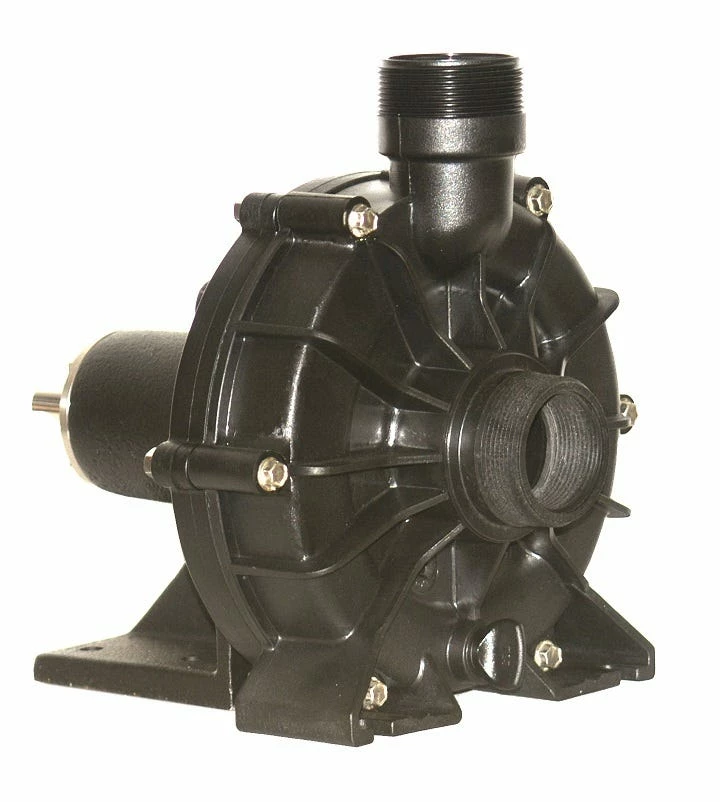

Pacer Pumps PC Series CCurve Cast Iron Pedestal Mount Pump PCE2CL CSS – Pumps & Wells

The PC Series pump from Pacer Pumps – for pumping, transferring or recirculating of acids, plating solutions, photographic chemicals, fume scrubber, waste water, etching and cleaning solutions. All major pump parts are precision molded of tough, corrosion resistant glass-reinforced polyester, polypropylene, Ryton or Noryl thermoplastic. These high strength plastics provide resistance to many acids, bases, solvents and salt water at temperatures as high as 200°F (93°C)

Mounted with cast iron pedestal with solid 3/4″ diameter 316 stainless steel shaft.

Features:

• Chemical resistant materials: glass reinforced Noryl, polyester, polypropylene or Ryton® construction
• Choice of drives: gasoline engine, electric, hydraulic or pneumatic motors
• Elastomers include your choice of Viton®, EPDM or Buna
• Standard fasteners are stainless steel, also available with titanium or Hastelloy® C internal fasteners, shaft seal and shaft adapter and Pacer’s own Polymar® non-metallic shaft seal for pumping highly corrosive liquids.
• Available close-coupled or flexible coupled to electric motors
• Non-metallic solution contact models available in all stock materials
• Flow rates: to 230 GPM or 94 ft. TDH @ 60 Hz (725 LPM or 20m @ 50 Hz)
• 1 1/2″, 2″ and 3″ NPT threaded ports
• 1 1/2″ and 2″ BSP threads available
