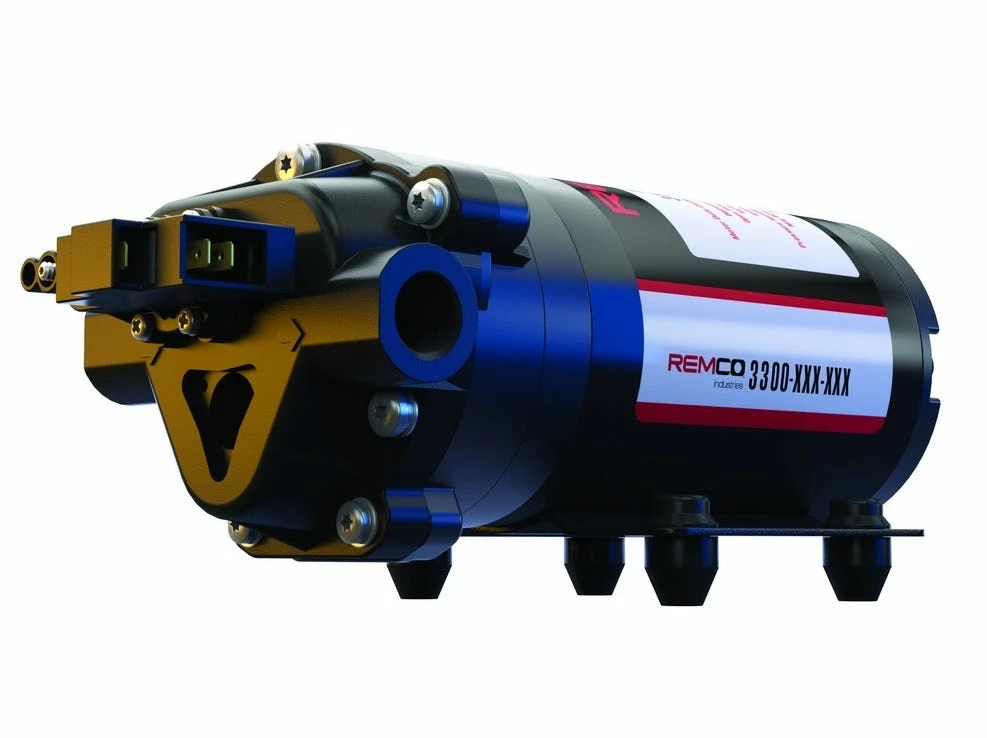

Remco Industries Model 3323 2.2 GPM Demand Pump – 9033231E182BSB – Pumps & Wells

Product Description:

Remco Extreme Duty pumps are capable of continuous heavy duty and extreme workloads. Matched with a high-performance motor, this model has extreme chemical capability and goes beyond the normal call of duty with many other additives as well. It also stands up to oil surfactants so you can feel confident that the Remco Extreme Duty will perform.

Specifications

Motor Type: 12 VDC permanent magnet, totally enclosed, non-ventilated

Mode: Bypass

Leads: 14 AWG, 7” long

Temperature Limits: Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 150°F (66°C).(See Heat Rise graph)

Materials of Construction

Housings: Polypropylene

Valves: Viton

Diaphragm: Santoprene

Fasteners: Stainless Steel

Motor Shell: Coated Steel

Pump

Type: 3 chamber positive displacement diaphragm pump, self priming, capable of being run dry, demand mode

Certifications: CE Approval

Liquid Temperature: 140°F (60°C) Max.

Priming Capabilities: 14 feet (4 m)

Max Pressure: 60 PSI

Inlet/Outlet Ports: 3⁄8” FNPT

Weight: 6 lbs (2.7 kg)
